Features

  • Alarm controller with reset button and LED beacon
  • Illuminated reset button, internal buzzer
  • Inputs for pull cords, acknowledge buttons and additional resets
  • Outputs for beacons / sounders and remote monitoring
  • Timed acknowledge function
  • Tough vandal‑resistant brushed‑finish stainless‑steel plate
  • Black silk screened annotation
  • Mounts in a standard UK, 35mm, double gang, back box
  • Anti‑tamper fixings available on request
  • Compatible with Folknoll remote monitoring systems

Our Disabled Toilet Alarm Range

Our rugged, vandal‑resistant emergency assistance alarms are fully compatible with BS 8300‑2 and document M making them perfect for public spaces. Whether you need a stand‑alone alarm for a single toilet, a multi‑alarm system with remote monitoring or an integrated solution that includes disabled refuge EVC, intercoms and building alarms we have you covered. For smarter sites, our networked platforms offer logging and third‑party interfaces, ensuring seamless integration and scalable safety.

Currently in installed in hospitals, railway stations, hotels, airports and other public spaces.

Enhanced Reset Units

Our enhanced emergency assistance alarm reset units are local alarm controllers with integral reset buttons. These units continually monitor pull cords, call points, etc. and activate beacon sounders and other indicators when an alarm is triggered. The reset button is used to reset (or cancel) the alarm after an incident has been resolved. Enhanced resets have an additional BS 8300-2 compatible timed acknowledge function to reassure users and facilitate audible communication. Reset units are usually installed inside an alarm zone to allow users to cancel the alarm and to ensure alarm responders visit the location in response to an alarm.

Compliant emergency assistance alarms cannot be reset remotely.

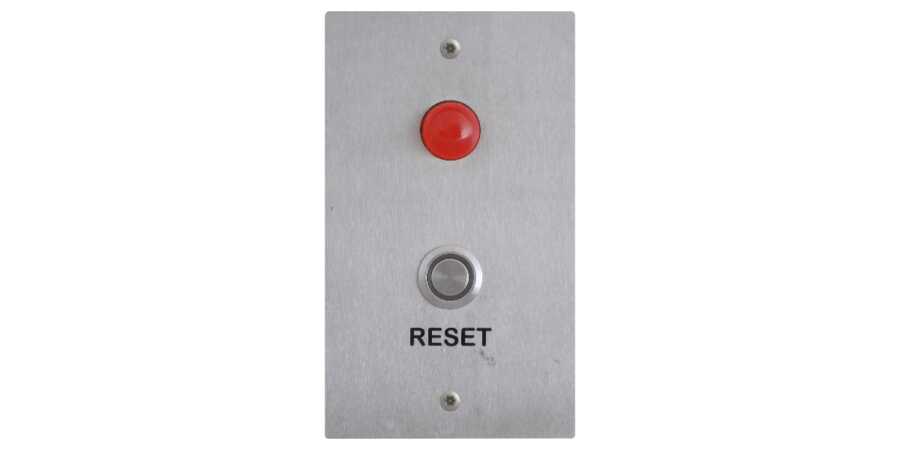

Reset Enhanced, Beacon, Vertical, Stainless

This reset/controller offers an extra‑large, high visibility, 20mm LED beacon, an illuminated reset button, a timed acknowledge function and an internal buzzer. The front plate is made from brushed finish stainless steel and annotated in black with the word RESET. Other finishes and alternative annotation are available on request. This unit is suitable for mounting in a standard UK, 35mm, double gang back box (not supplied).

Ideal retrofit for systems with existing double gang boxes

For other applications we offer a range of alternative reset units with alarm‑strip controllers, telephone interfaces, etc.

Specifications


Reset
Large, vandal resistant, push button with red LED state indicator (other options by request)
Beacon
Large, bright red, 20mm dome LED (other colours by request)
Controller
Enhanced emergency assistance with acknowledge
Input voltage
12Vdc / 24Vdc, usually supplied from a battery backed, system PSU
Front plate
Stainless steel (304/1.4301), brushed‑finish (other finishes on request)
Annotation
Silk screened, black (other options on request)
Plate dimensions
Width: 86mm, height: 146mm, depth: < 35mm (approx.)
Plate mounting
Standard UK, 35mm, double gang, back box (not supplied)

Suitable for
